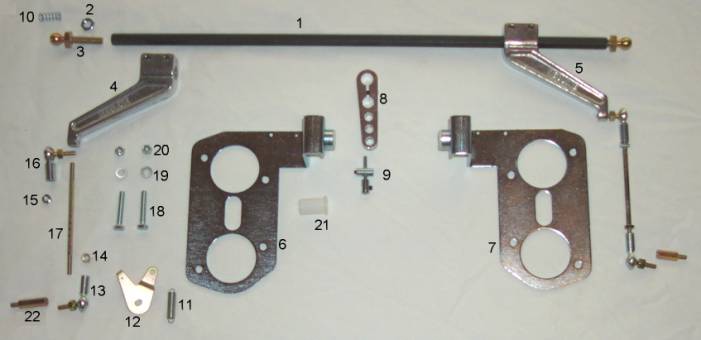

REDLINE IDF Pro Bug Hex Linkage Parts Breakdown

Pro Bug Hex Linkage kits

Type I 99004-912 Type IV 99004-295

Illustration no.

Part No.

Description

1



2

3

4&5

6



7



8

9

10

11

12



13

14

15

16

17



18

19

20

21

22

444.317.02

444.295.02

444.311.06

99024.125

444.317.07

444.317.05

444.295.05

444.317.04

444.295.04

444.311.08

444.411.09

444.311.11

99024.440

444.317.08

444.317.09

99024.128

99024.304

444.8456.11

99024.129

99024.105

99024.103

444.317.06

444.8456.08

444.8456.10

444.311.09

444.311.10

444.311.12



Hex cross bar Type I 19 L

Hex cross bar Type IV 17 L

8mm Jam nut for ball ends

Ball end

Cross bar clamp on lever

Cross bar bracket left hand type I

Cross bar bracket left hand type IV

Cross bar bracket right hand type I

Cross bar bracket right hand type IV

Cable bracket clamp on lever

Accelerator cable extender assembly

Ball end pre-load spring

Throttle return spring

Throttle lever right hand

Throttle lever left hand

Rod end left hand (gold)

10-32 Jam nut left hand (gold)

10-32 Jam nut

Rod end right hand

4 Hex rod type I

2 Hex rod Type IV

10-32 x 1.25 bolt

3/16 Washer

10-32 Nyloc nut

Nylon insert bushing

Rod end spacer right hand (short)

Rod end spacer left hand (long)
