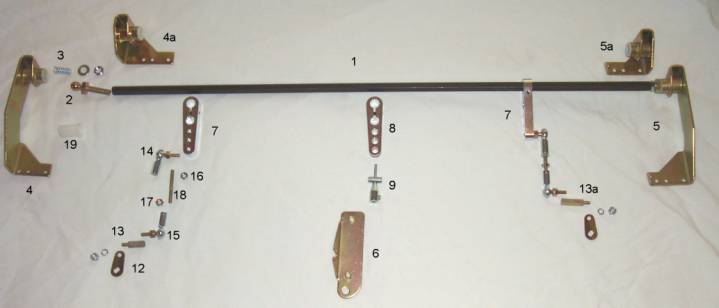

REDLINE ICT Pro Bug Hex Linkage Parts Breakdown

Pro Bug Hex Linkage kits

Type I 99007-411, Type III 99007-311, Type IV 99007.412

Illustration no.

Part No.

Description

1

1

1

2

3

4

4a

5

5a

6

7

8

9



10

11

12

13

13A

14

15

16

17

18





19



444.411.02

444.411.02

444.311.02

99024.125

444.311.11

444.411.03B

444.311.03B

444.411.04B

444.311.04B

444.411.11

444.311.07B

444.311.08

444.411.09

444.311.13

99024.414

99024.415

444.311.05

444.411.12

444.311.10

99024.129

99024.128

444.8456.11

99024.304

99024.107

99024.102

99024.104

444.311.09



Hex cross bar Type I 26 L

Hex cross bar Type IV 26 L

Hex cross bar Type III 27 L

Ball end

Ball end spring tensioner

Cross bar bracket left hand type I (long)

Cross bar bracket left hand type III, IV (short)

Cross bar bracket right hand type I (long)

Cross bar bracket right hand type III, IV (short)

Coil bracket

Hex rod lever common

Hex rod cable lever

Accelerator cable shortener

Cable extender type III

Heat tube block off plate type I (not pictured)

Heat block off gasket type I (not pictured)

Throttle levers

Rod end spacer left hand (long)

Rod end spacer right hand (short)

Rod end right hand (silver)

Rod end left hand (gold)

10-32 Jam nut right hand (silver)

10-32 Jam nut left hand (gold)

Hex rod 6 type I

Hex rod 1 type III, IV

Hex rod 3 type IV

Nylon bushing
