VW dual IDF Carburetor Lever Instructions

99004.913

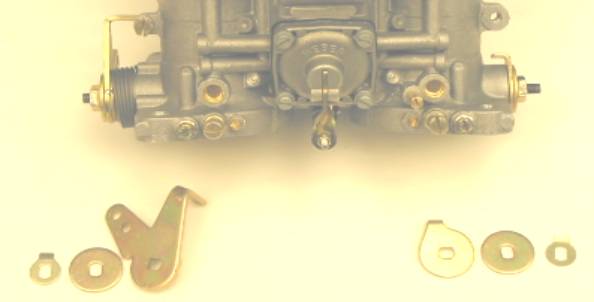

Passenger side, right side, throttle lever install.



BENCH ASSEMBLY

Remove original levers keeping the wave washer, return spring and nuts.

Install the REDLINE lever & hardware on the carburetor throttle shaft.

CAUTION:  Do not over tighten the throttle shaft nut.

Proper tightness can be achieved by installing the throttle shaft nut just slightly more than finger tight (finger tight, then one more flat on the nut) and bend lock tab. Check for full throttle operation, idle stop to wide-open throttle. If any “sticking” or “binding” occurs, loosen nut, rap on the end of the shaft LIGHTLY and re-tighten with reduced torque.

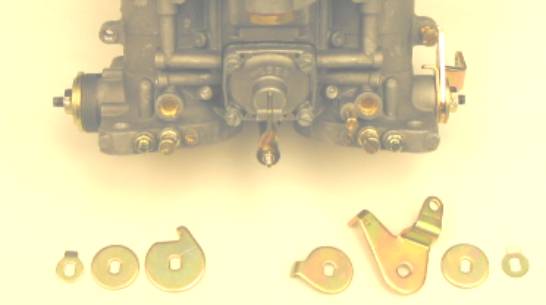

Drivers side, Left side, throttle lever install.

BENCH ASSEMBLY

Remove original levers keeping the wave washer, return spring and nuts.

Install the REDLINE lever & hardware on the carburetor throttle shaft.

CAUTION:  Do not over tighten the throttle shaft nut.

Proper tightness can be achieved by installing the throttle shaft nut just slightly more than finger tight (finger tight, then one more flat on the nut) and bend lock tab. Check for full throttle operation, idle stop to wide-open throttle. If any “sticking” or “binding” occurs, loosen nut, rap on the end of the throttle shaft LIGHTLY and re-tighten with reduced torque.
