Deluxe Cable Linkage for DCOE Carburetors



REDLINE announces NEW design and layouts of linkage for the DCOE and DCO/SP carburetors.

These have:

Versatile features:

Different versions for fitting above or below the carburetors

Designed for use with single or twin cable installations (for in-line engines)

All can be fitted with the cable routed from either side

Safety features:

Fitted with adjustable over-center stop

Twin return springs

Twin sintered bronze self lubricating quadrant bearings

High quality 8mm steel ball joints

Additional features include:

Inner cable connects to quadrant cam for smooth linear action

Lightweight construction fabricated in zinc-plated steel, which matches existing components on the carburetors

Adjustment for throttle cable movement from 22mm to 40mm

Complete with all fitting accessories and a set up instructions

Two versions offered with additional options for twin cable use

99006-101

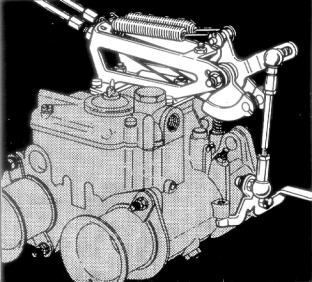

Top mounting for single cable operation incorporates clamp-on ferrule for use with existing throttle cable

99006-102

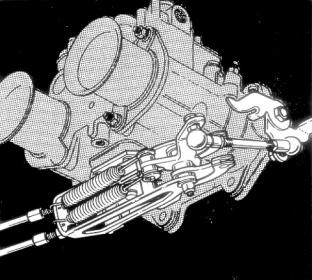

Bottom mounting for single cable operation incorporates clamp-on ferrule for use with existing throttle cable

99006-103

Universal throttle cable kit

All kits are supplied with single cable for standard installation

99006-101 and 99006-102 require additional cable for dual cable application
