WEBER CARBURETORS

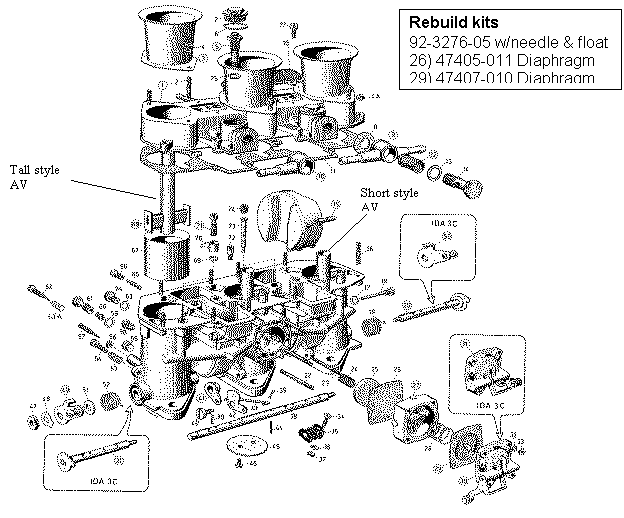

40 & 46 IDA 3c/3c1 (3 barrel typical view)

31300-001 / 002 40 IDA

31360-008 / 009 46 IDA

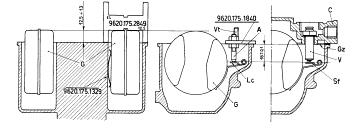

Float setting notes
  Fuel pressure is critical to float spillage
2.5 to 3 PSI. Max
Down load Hi-Res version



KEY CALIBRATED PARTS

5) 79508-175 / 200 Needle & Seat

15) 41015-007 Float

60) 73801-xxx Main Jet

74) 77201-xxx Air corrector Jet

65) 74403-xxx Idle Jet

70) 76201-xxx Accelerator pump Jet

73) 61440-xxx Emulsion Tube

67) 71502-xxx 40mm Venturi

71504-xxx 46mm Venturi

 71103-450 40mm Aux venturi (short style)

  71104-450 46mm Aux Venturi (Tall style)

Aux ventures are interchangeable
