WEBER CARBURETORS

38 DGAS

18930-020  38DGES

18930-032  38DGAS

Float setting notes
1. Fuel pressure is critical to float spillage. Redline recommends 2.5 to 3 lbs. max.

2. For aggressive off-road float drop should be limited to 44.5mm max. drop

Down load Hi-Res version

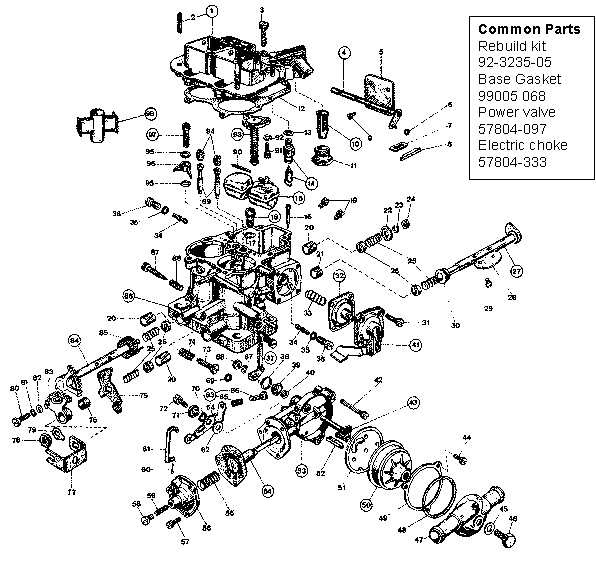

KEY CALIBRATED PARTS
14) 79516-XXX Needle and Seat (Steel needle)
79519-xxx (Viton performance needle)
15) 41030-019 Brass Float
19) 73801-xxx Main Jet
94) 77201-xxx Air corrector Jet
34) 74409-xxx Idle Jet (choke side)
74403-xxx Idle Jet (Inlet Side)
some early models have 74403-xxx on both sides
96) 76212-xxx Accelerator pump Jet
