WEBER CARBURETORS

32 / 36 DFEV 32 / 36 DFAV

22680 056 DFAV

22680 070 DFEV

Float setting notes
1. Fuel pressure is critical to float spillage.
Redline recommends 2.5 to 3 lbs.

2. For aggressive off-road use float drop should be limited to 43mm max drop setting.

This is done by setting tab A to limit drop.

Down load Hi-Res version

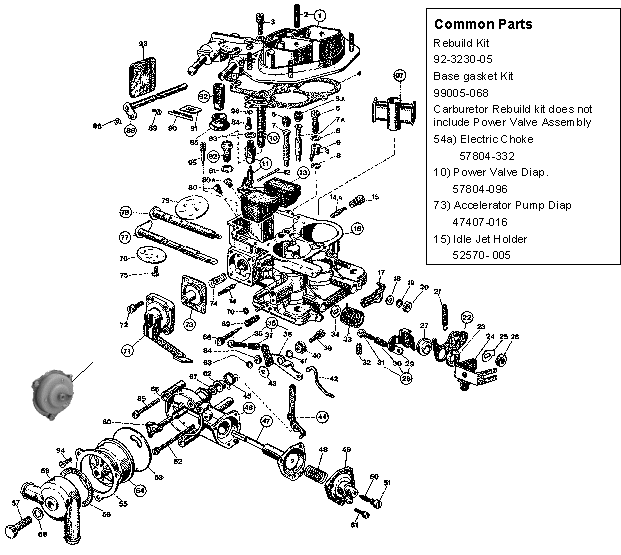

KEY CALIBRATED PARTS
11) 79516-xxx Needle & Seat
13) 41030-022 Float
80) 73801-xxx Main Jet
 5) 77201-xxx Air corrector Jet
15) 74403-xxx Idle Jet
9) 76211-xxx Accelerator pump Jet
    76215-xxx Performance Double pump jet
